Išsami informacija apie šį komponentą ir jo pasirinkimo galimybės

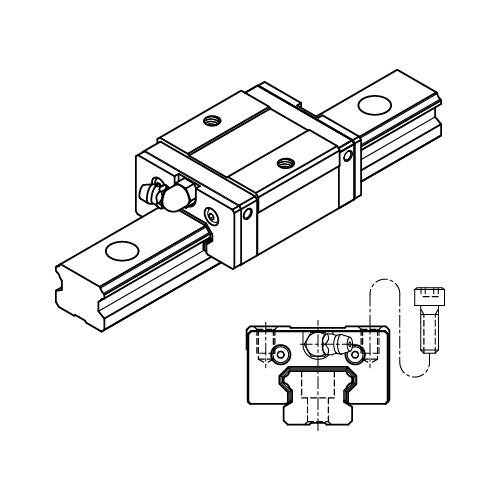

MSB30TS Linear сarriage
Cross References
EGH30SAZAH (HIWIN)
TRS30VSZ0 (TBI)
SR30VUUC1H / SR30VUUC0H / SR30VUUH (THK)
MSB30TS is a short length low narrow square type carriage. Fastening holes are only accessible from the top. Short carriages are mostly used in pairs. The MSB-Series is used for the most compact solution for light and normal loads.
The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.
| Prekės ženklas: PMI |
| Linijinės kreipiamosios serija: MSB - Compact |
| Linijinės kreipiamosios dydis: 30 |
| Carriage type: TS (Short square, mounting from top. Medium load) |
Jūsų pasirinkta specifikacija
Pasirinkite iš galimų variantų. Jūsų pasirinkimas yra apibendrintas čia užklausai.
Galutinis dalies numeris, kaina ir pristatymo laikas patvirtinamas pasiūlyme.
Siųsti brėžinio arba dalies numerį.
Mes galime peržiūrėti matmenis, kiekį ir taikymo reikalavimus.
