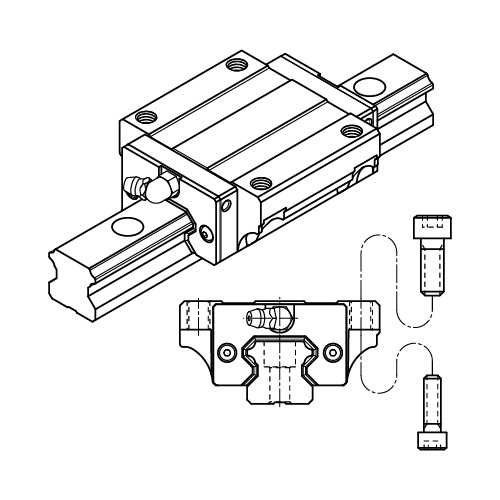

MSA30E Linear сarriage
MSA30E is a carriage with installation on both (top or bottom) sides.
Cross References
HGW30CAZAH (HIWIN)
TRH30FNNZ0 (TBI)
SBI30FLNK2 (SBC)
R165171320 (Rexroth)
HSR30ASSC1H (THK)
LLRHC30AT1P3 (Ewellix)
HRC30FNV2H (CPC)
The MSA-E/LE is a carriage with flange. This carriage is available in two different lengths, normal (MSA-E) or long (MSA-LE). Fastening holes are accessible either from top (S1) or bottom (S2). Full ball MSA-Series is especially suited for high precision and high rigidity required motion, for normal and high load.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.
| Zīmols: PMI |
| Lineārās vadotnes sērija: MSA (liela slodze, pilns lodīšu komplekts) |
| Lineārās vadotnes izmērs: 30 |
| Carriage type: E (Flange, mounting either from top or bottom. Heavy load) |
Jūsu izvēlētā specifikācija
Izvēlieties no iepriekš minētajām iespējām. Jūsu izvēle ir apkopota šeit par pieprasījumu.
Pēdējās daļas numurs, cena un izpildes laiks ir apstiprināts piedāvājumā.
Sūtīt zīmēšanas vai daļas numuru.
Mēs varam pārskatīt izmērus, daudzumu un piemērošanas prasības.
Heavy Load Type, MSA Series
The trains of balls are designed to a contact angle of 45° which enables it to bear an equal load in radial, reversed radial and lateral directions. Therefore, it can be applied in any installation direction. Furthermore, MSA series can achieve a well balanced preload for increasing rigidity in four directions while keeping a low frictional resistance. This is especially suit to high precision and high rigidity required motion.
The design of lubrication route makes the lubricant evenly distribute in each circulation loop. Therefore, the optimum lubrication can be achieved in any installation direction, and this promotes the performance in running accuracy, service life, and reliability.
High Rigidity, Four-way Equal Load
The four trains of balls are allocated to a circular contact angle at 45°, thus each train of balls can take up an equal rated load in all four directions. Moreover, a sufficient preload can be achieved to increase rigidity, and this makes it suitable for any kind of installation.
Smooth Movement with Low Noise
The simplified design of circulating system with strengthened synthetic resin accessories makes the movement smooth and quiet.
Self Alignment Capability
The self adjustment is performed spontaneously as the design of face-to-face (DF) circular arc groove. Therefore, the installation error could be compensated even under a preload, and which results in precise and smooth linear motion.
Interchangeability
For interchangeable type of linear guideway, the dimensional tolerances are strictly maintained within a reasonable range, and this has made the random matching of the same size of rails and carriages possible. Therefore, the similar preload and accuracy can be obtained even under the random matching condition. As a result of this advantage, the linear guideway can be stocked as standard parts, the installation and maintenance become more convenient. Moreover, this is also beneficial for shortening the delivery time.
