MSB30TE Linear сarriage
Cross References
EGW30SCZAH / EGW30SCZBH / EGW30SCZ0H (HIWIN)
TRS30FSNZ0 (TBI)
SBS30FVK1 (SBC)
SR30SBUC1H / SR30SBUC0H / SR30SBUH (THK)

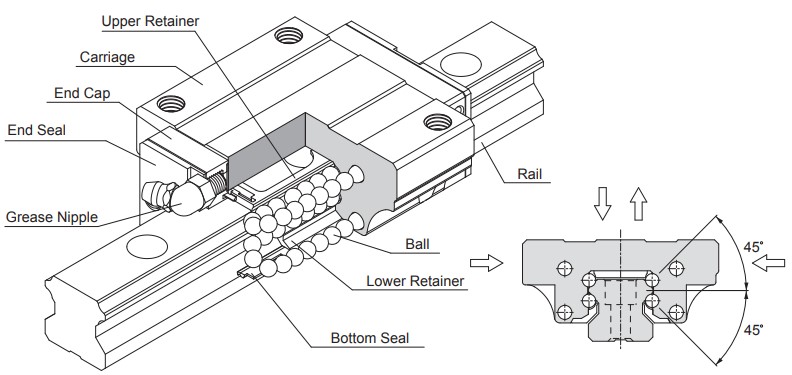

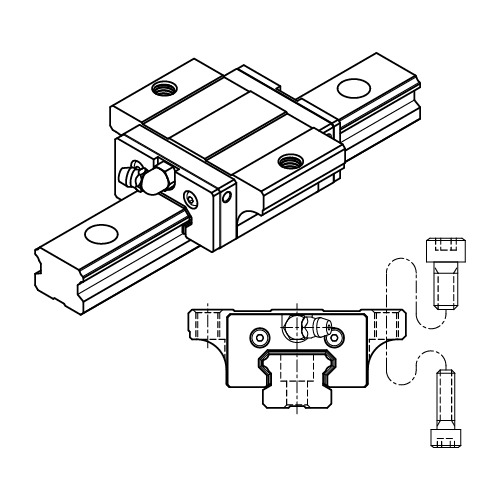

MSB30TE is a short length low flange carriage. The mounting holes are accessible from either the top (S1) or the bottom (S2). Short carriages are mainly used in pairs. The MSB series is used for the most compact solution for light to normal loads.
The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TE) or normal (MSB-E). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.
| Brand: PMI |

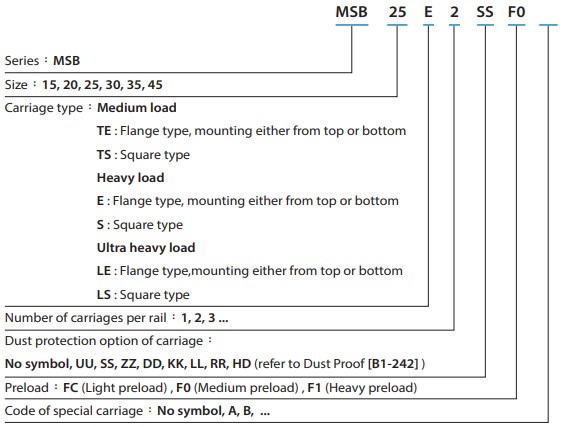

| 01_Linear guideway series: MSB (Compact, Full Ball) |
| Linear guideway size: 30 |
| Carriage type: TE (Short flange, mounting either from top or bottom. Medium load) |
