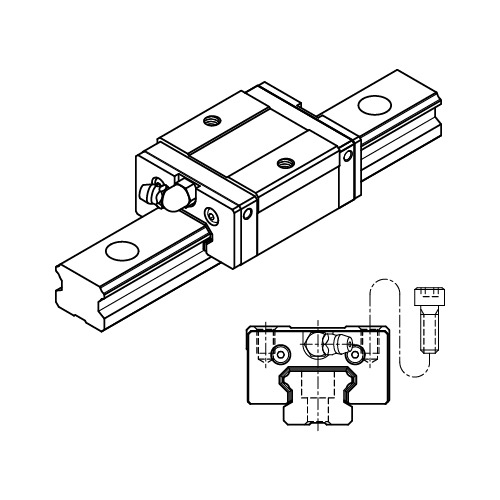

MSB20TS Linear сarriage
Cross References
EGH20SAZAH / EGH20SAZBH / EGH20SAZ0H (HIWIN)
TRS20VSZ0 (TBI)
SBS20SVK1 / SBS20SVK2 / SBS20SVK1 (SBC)
R166481310 (Rexroth)
SR20VUUC1H / SR20VUUC0H / SR20VUUH (THK)
MSB20TS is a short length low narrow square type carriage. Fastening holes are only accessible from the top. Short carriages are mostly used in pairs. The MSB-Series is used for the most compact solution for light and normal loads.
The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.
| Zīmols: PMI |
| Lineārās vadotnes sērija: MSB (Compact, Full Ball) |
| Lineārās vadotnes izmērs: 20 |
| Carriage type: TS (Short square, mounting from top. Medium load) |
