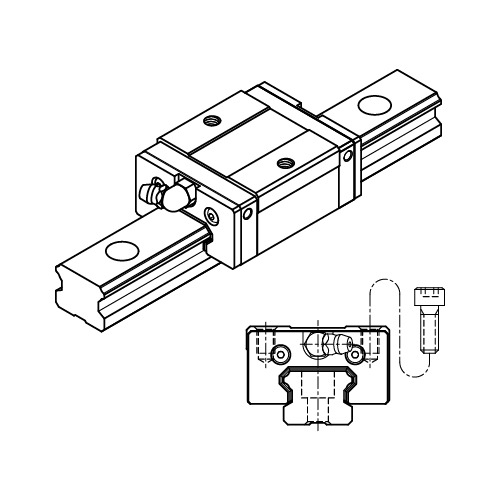

MSB35TS Linear сarriage
Cross References
EGH35SAZAH / EGH35SAZBH / EGH35SAZ0H (HIWIN)
TRS35VSZ0 (TBI)
SR35VUUC1H / SR35VUUC0H / SR35VUUH (THK)
MSB35TS is a short length low narrow square type carriage. Fastening holes are only accessible from the top. Short carriages are mostly used in pairs. The MSB-Series is used for the most compact solution for light and normal loads.
The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.
| Zīmols: PMI |
| Lineārās vadotnes sērija: MSB (Compact, Full Ball) |
| Lineārās vadotnes izmērs: 35 |
| Carriage type: TS (Short square, mounting from top. Medium load) |
Jūsu izvēlētā specifikācija
Izvēlieties no iepriekš minētajām iespējām. Jūsu izvēle ir apkopota šeit par pieprasījumu.
Pēdējās daļas numurs, cena un izpildes laiks ir apstiprināts piedāvājumā.
Sūtīt zīmēšanas vai daļas numuru.
Mēs varam pārskatīt izmērus, daudzumu un piemērošanas prasības.
