MSA25S Linear сarriage

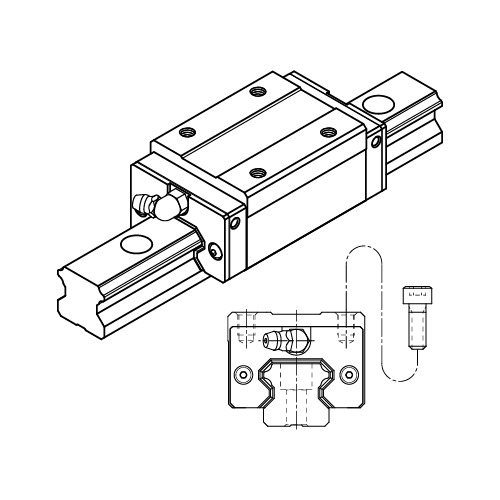

MSA25S is a narrow type of PMI linear guideway, can be installed from top side of carriage.
Cross References
HGH25CAZAH (HIWIN);
TRH25VNNZ0 (TBI);
SBI25SLK2 (SBC);
R162221325 (Rexroth);
HSR25RSSC1H (THK);
LLRHC25UT1P3 (Ewellix);
HRC25MNV2H (CPC)
The MSA S/LS represents a streamlined square-shaped carriage, offered in both standard (MSA-S) and extended (MSA-LS) lengths. Notably, mounting holes are exclusively positioned on the upper side. Specifically tailored for applications demanding both precision and robustness, the MSA Series caters to both regular and substantial load requirements.
Characteristics:
• Heavy Load, High Rigidity
• Self Alignment Capability
• Smooth Movement
• Low Noise
• Interchangeability.
| Marka: PMI |
| Seria prowadnic liniowych: MSA (duża nośność, pełny zestaw kulek) |
| Rozmiar prowadnicy liniowej: 25 |
| Carriage type: S (Square, mounting from top. Heavy load) |
Wybrana specyfikacja
Wybierz jedną z dostępnych opcji powyżej. Twój wybór jest tu podsumowany.
Ostateczny numer części, cena i termin realizacji są potwierdzone w ofercie.
Wyślij rysunek lub numer części.
Możemy dokonać przeglądu wymiarów, ilości i wymagań aplikacji.
Heavy Load Type, MSA Series
The trains of balls are designed to a contact angle of 45° which enables it to bear an equal load in radial, reversed radial and lateral directions. Therefore, it can be applied in any installation direction. Furthermore, MSA series can achieve a well balanced preload for increasing rigidity in four directions while keeping a low frictional resistance. This is especially suit to high precision and high rigidity required motion.
The design of lubrication route makes the lubricant evenly distribute in each circulation loop. Therefore, the optimum lubrication can be achieved in any installation direction, and this promotes the performance in running accuracy, service life, and reliability.
High Rigidity, Four-way Equal Load
The four trains of balls are allocated to a circular contact angle at 45°, thus each train of balls can take up an equal rated load in all four directions. Moreover, a sufficient preload can be achieved to increase rigidity, and this makes it suitable for any kind of installation.
Smooth Movement with Low Noise
The simplified design of circulating system with strengthened synthetic resin accessories makes the movement smooth and quiet.
Self Alignment Capability
The self adjustment is performed spontaneously as the design of face-to-face (DF) circular arc groove. Therefore, the installation error could be compensated even under a preload, and which results in precise and smooth linear motion.
Interchangeability
For interchangeable type of linear guideway, the dimensional tolerances are strictly maintained within a reasonable range, and this has made the random matching of the same size of rails and carriages possible. Therefore, the similar preload and accuracy can be obtained even under the random matching condition. As a result of this advantage, the linear guideway can be stocked as standard parts, the installation and maintenance become more convenient. Moreover, this is also beneficial for shortening the delivery time.
