MSB15TS Linear сarriage
Cross References
EGH15SAZAH / EGH15SAZBH / EGH15SAZ0H (HIWIN)
TRS15VSZ0 (TBI)
SBS15SVK2 / SBS15SVK3 / SBS15SVK3 (SBC)
SR15VUUC1H / SR15VUUC0H / SR15VUUH (THK)

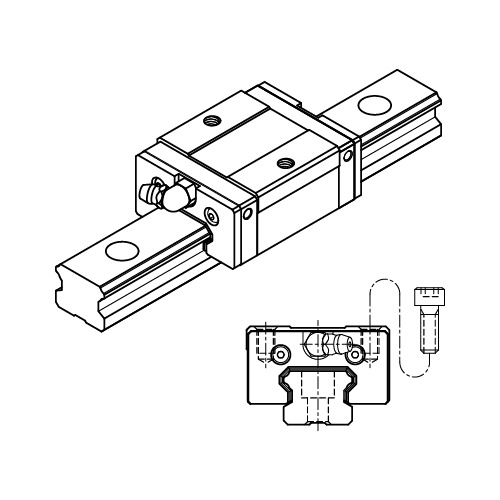

MSB15TS is a short length low narrow square type carriage. Fastening holes are only accessible from the top. Short carriages are mostly used in pairs. The MSB-Series is used for the most compact solution for light and normal loads.
The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.

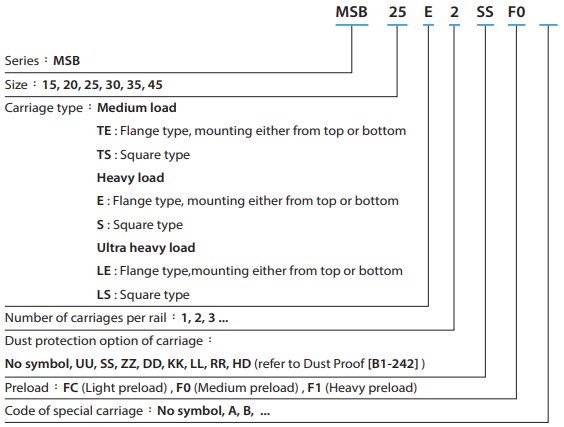

| Brand: PMI |
| 01_Linear guideway series: MSB (Compact, Full Ball) |
| Linear guideway size: 15 |
| Carriage type: TS (Short square, mounting from top. Medium load) |
Your selected specification
Choose from the available options above. Your selection is summarized here for the enquiry.
The final part number, price and lead time are confirmed in the quote.
