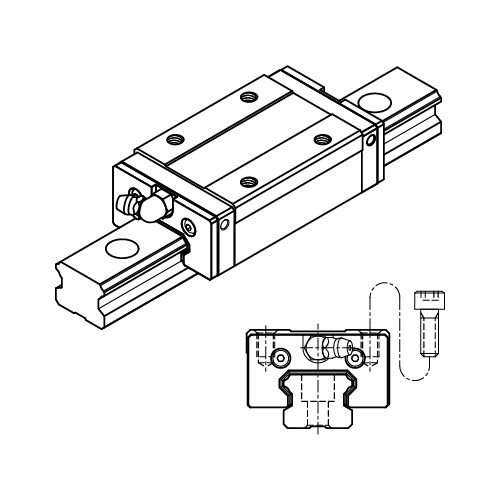

MSB20S Linear сarriage
Cross References
EGH20CAZAH / EGH20CAZBH /EGH20CAZ0H (HIWIN)
TRS20VNNZ0 (TBI)
SBS20SLK2 / SBS20SLK3 / SBS20SLK1 (SBC)
R169481310 (Rexroth)
SR20WUUC1H / SR20WUUC0H / SR20WUUH (THK)
MSB20S is a normal length low narrow square type carriage. Fastening holes are only accessible from the top. The MSB-Series is used for the most compact solution for light and normal loads.
The MSB series of linear guideway from PMI is a series with an installation height lower than the standard MSA series. Carriages is available in two lengths: short (MSB-TS) or normal (MSB-S). These linear guides are typically used in applications that require the most compact solution. The MSB series is preloaded from stock to 2% of the dynamic load rating. It can also be ordered with the MSAxxSL lubrication block, which is retrofitted onto the carriage and makes the carriage maintenance-free for 25,000 km under normal conditions.
| 品牌: PMI |
| 直线导轨系列: MSB (Compact, Full Ball) |
| 直线导轨规格: 20 |
| Carriage type: S (Square, mounting from top. Heavy load) |
